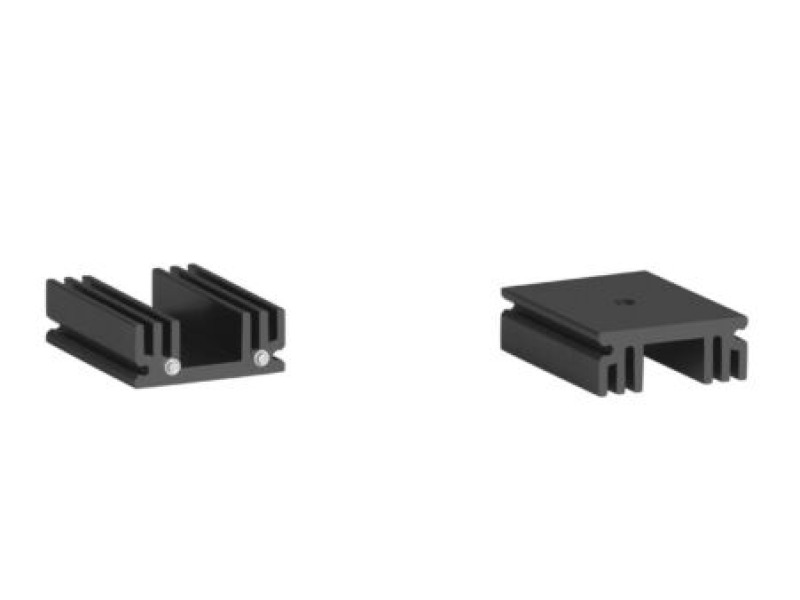

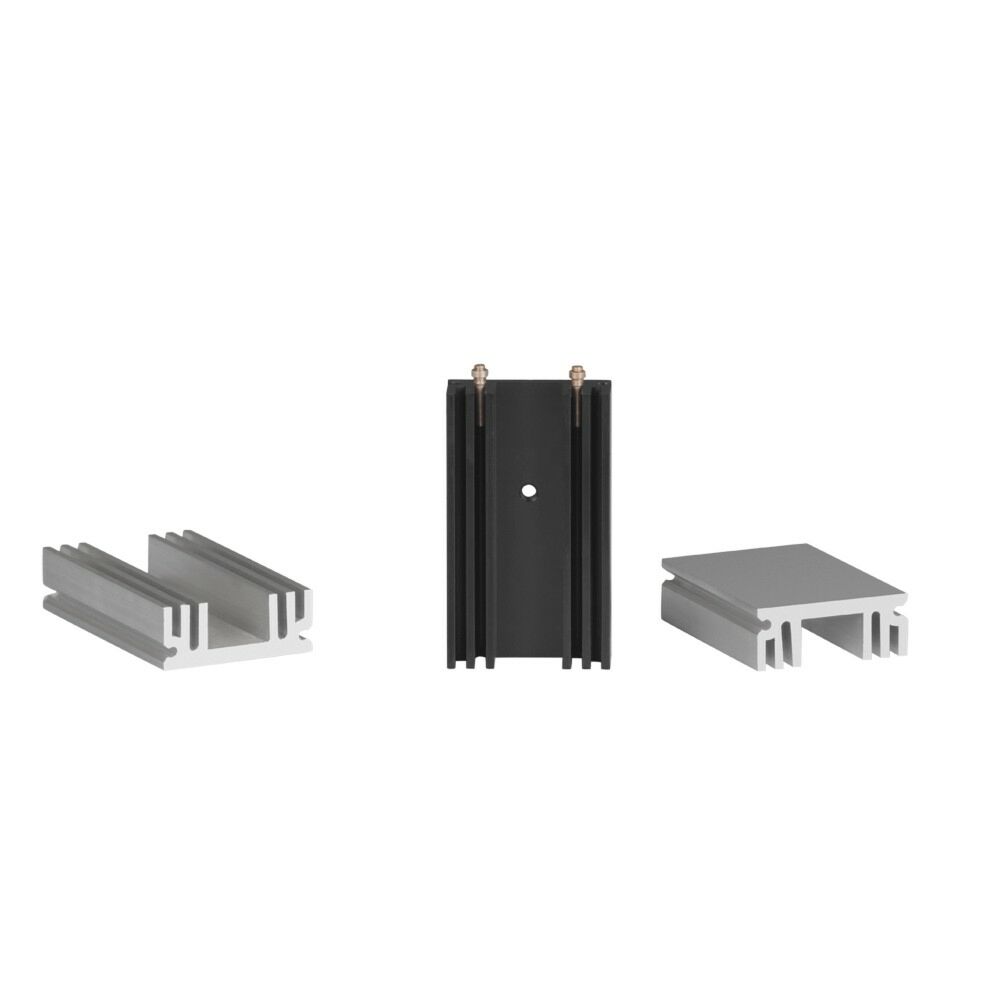

45 AS Component Heatsink

45 AS Component Heatsink is part of our finished product range designed for cooling electronic components. You can review the dimensions and available product options below.

Category:Component Heatsink
Material:Aluminum 6063-T5
Surface:Black Anodized / Raw (untreated surface)

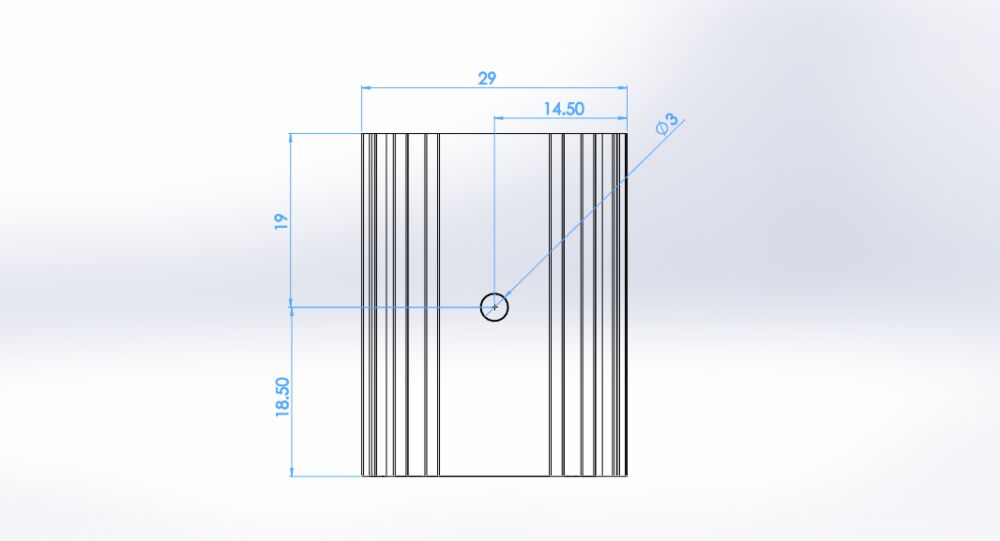

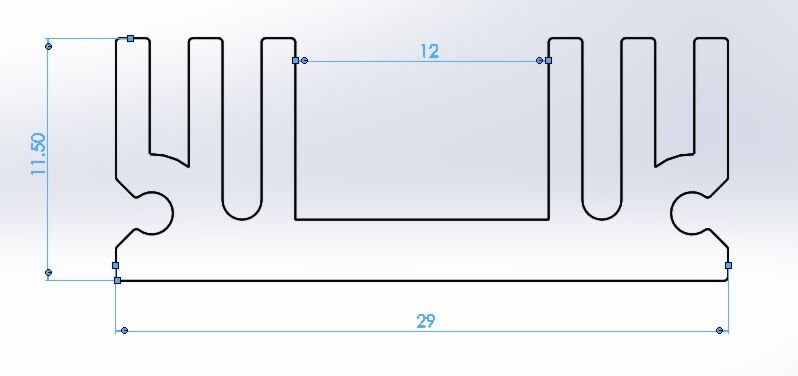

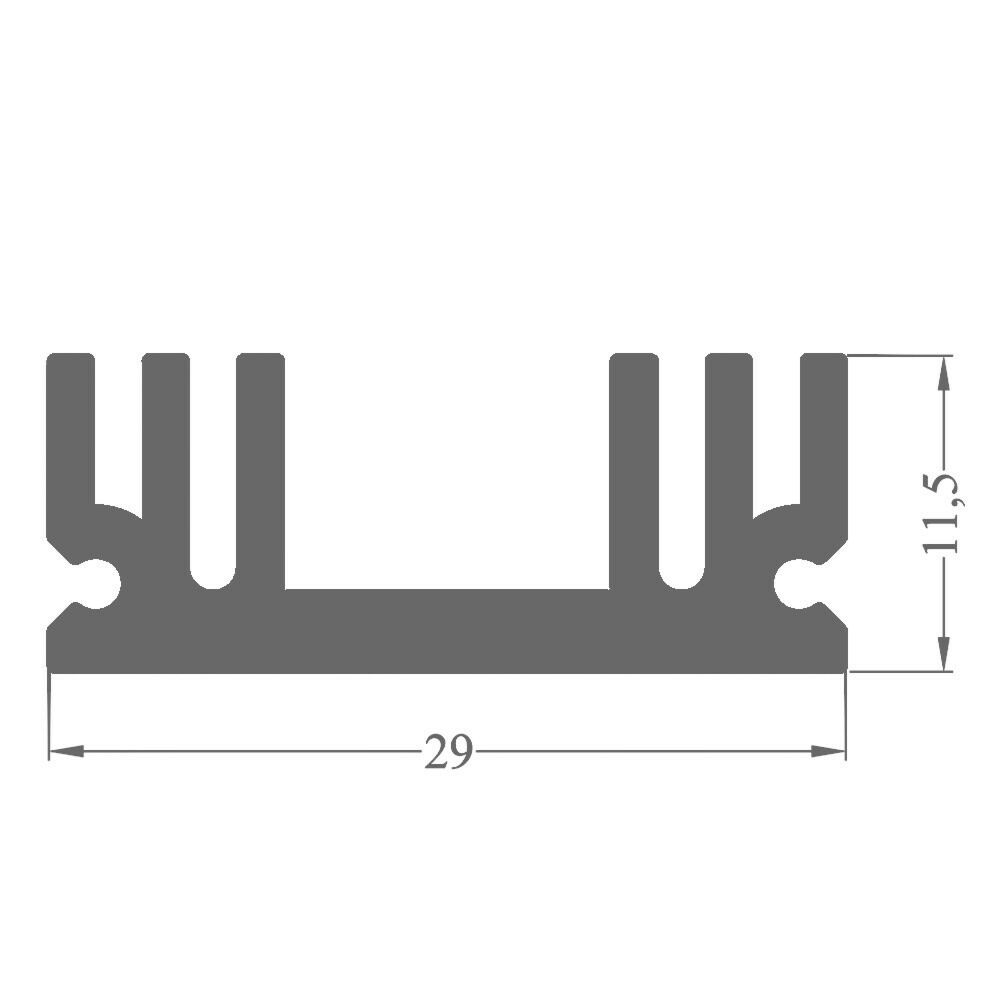

Height:11,50 mm / 0,45"
Width:29 mm / 1,14"

Standard Product Options

Length	Surface	Hole / Connection	Product Code

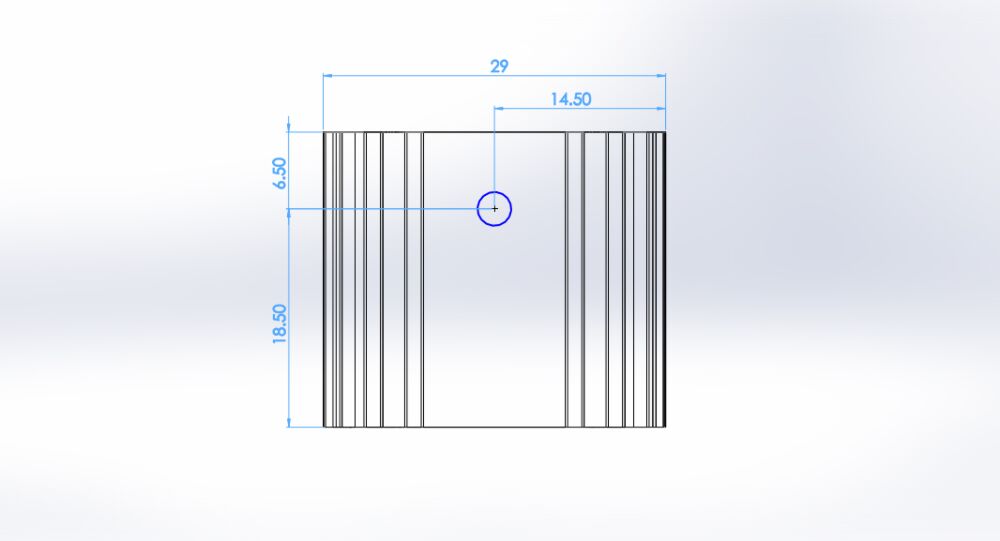

25 mm	Black Anodized	Çap 3 mm / M3	45AS25SE

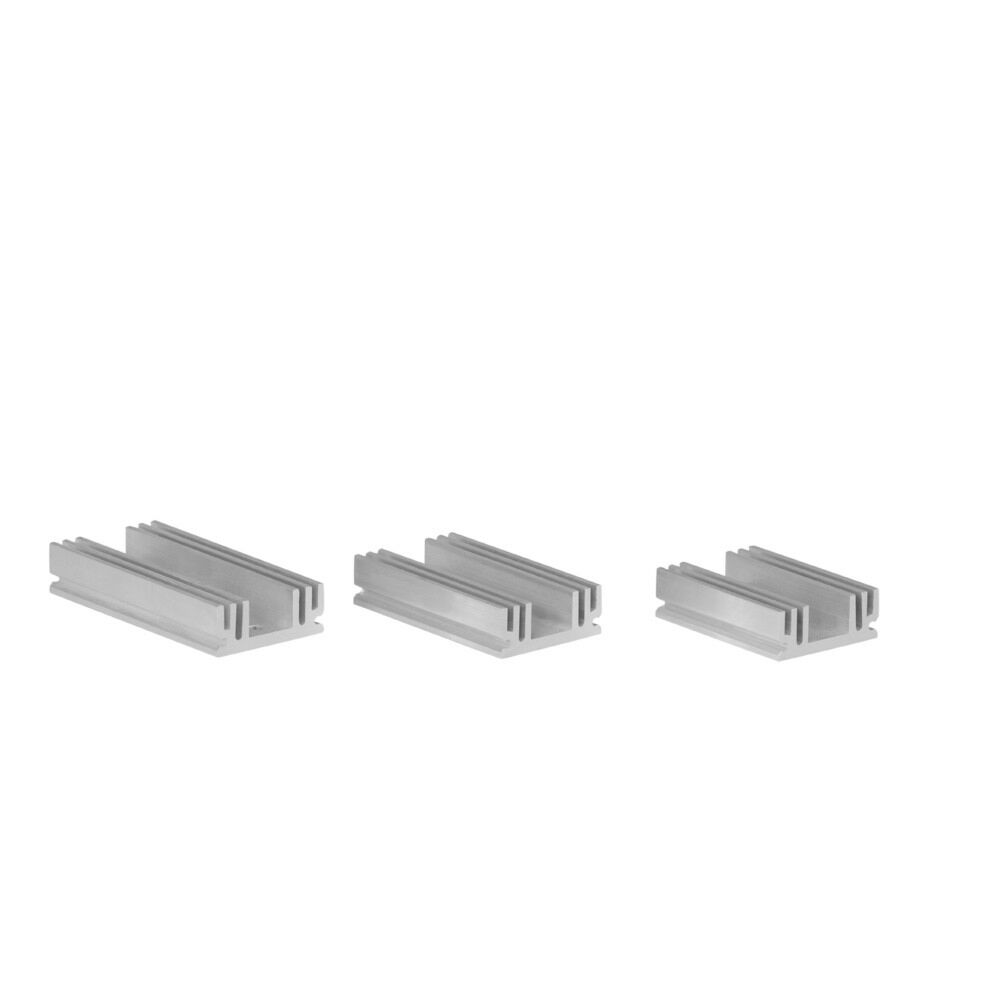

25 mm	Raw (untreated)	Çap 3 mm / M3	45AS25NAT
30 mm	Black Anodized	Çap 3 mm / M3	45AS30SE
30 mm	Raw (untreated)	Çap 3 mm / M3	45AS30NAT
35 mm	Black Anodized	M3 & Top Threaded	45AS35SEM3

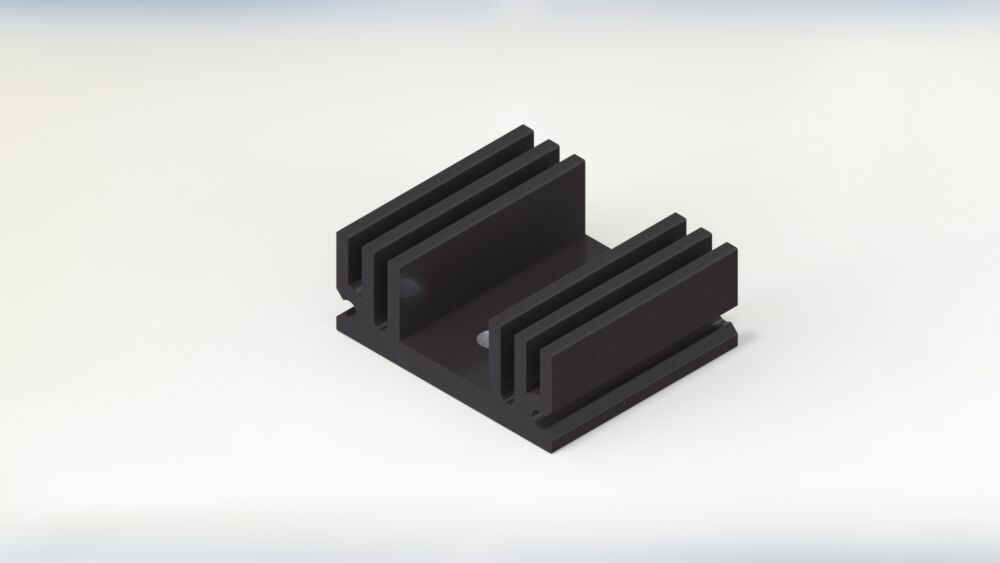

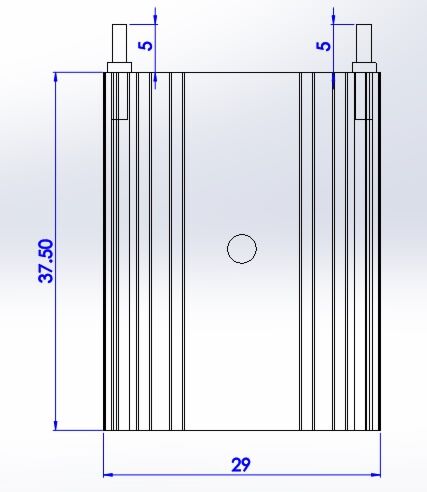

37,5 mm	Black Anodized	M3	45AS37.5SE
37,5 mm	Raw (untreated)	M3	45AS37.5NAT

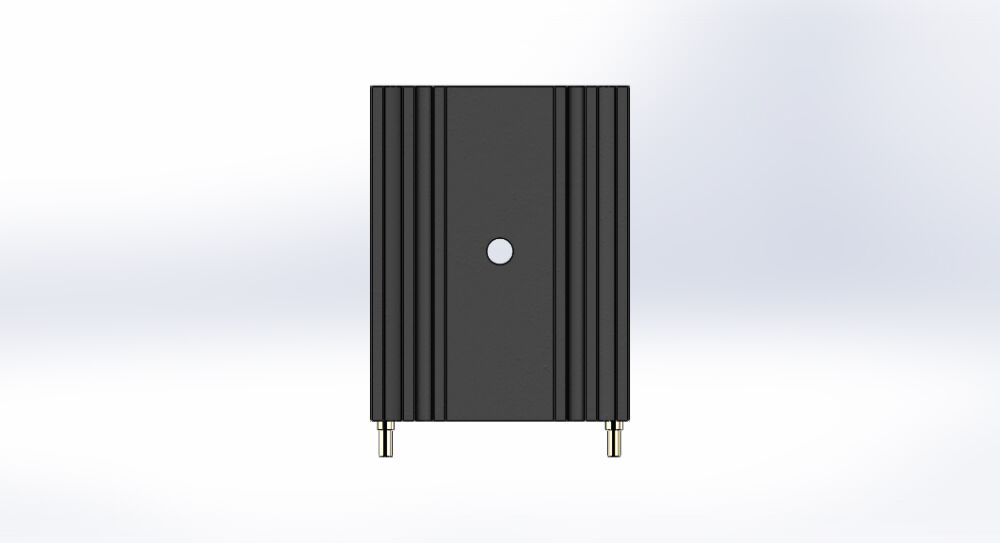

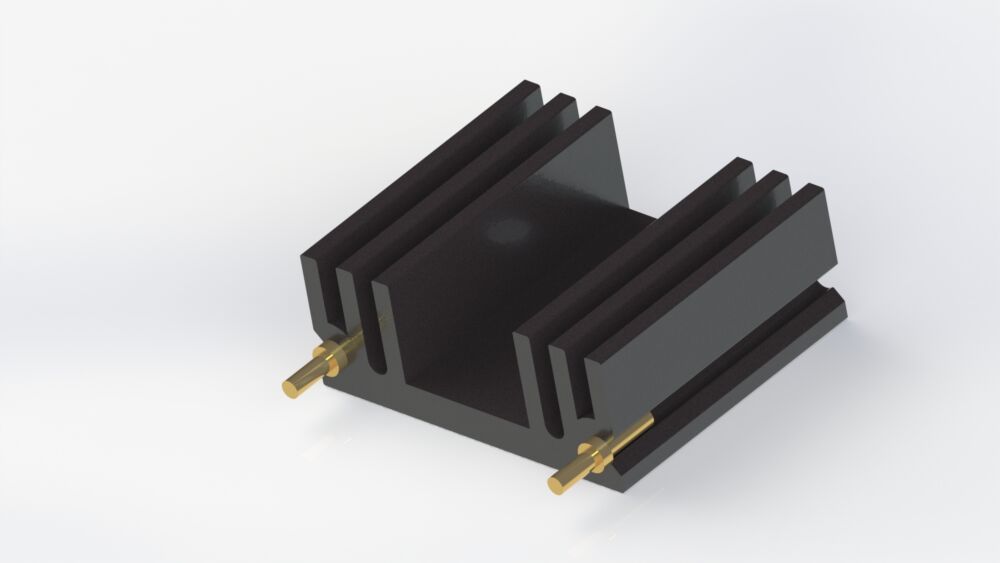

37,5 mm	Black Anodized	M3 & With Pins	45AS37.5SEPIM
37,5 mm	Raw (untreated)	M3 & With Pins	45AS37.5NATPIM
50 mm	Black Anodized	M3	45AS50SE

Please contact us for different processing variations of the 45 AS component heatsink. Custom pin-based manufacturing is available for all 45 AS products.
